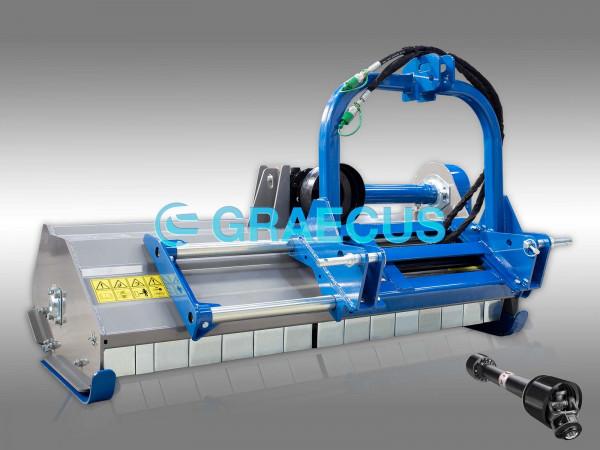

Flail mower vineyard medium-heavy - MKD Series with Hydraulic Displacement
The GRAECUS MKD-H series mulchers are a medium type with a working width of 105 to 175 cm. The model has a lateral hydraulic displacement of 17 to 35 cm. Their compact dimensions and sturdy construction are key for vine growers and fruit growers. Electronically balanced rotor, forged hammers, lateral hydraulic displacement and adjustable roller with wiper are some of their main features. It is an option to order knives instead of forged hammers. The MKD-H series is suitable for compact and small tractors with power from 15 to 35 hp.
Flail mower medium type MKD105-H,
720g heat forged hammers to shred vegetation up to 5cm thick.
Hydraulic side shift
Cast iron gear Τ311 with free wheel 540 rpm.
Long life bearings.
Electronically balanced Double spiral drive shaft.
Protective front bulk-heads.
The vessel is equipped internally with a toothed blade for better shredding
Height adjustable lateral skids.
Rear bonnet can be opened for maintenance purposes.
Adjustable roller unit with mud scraper.
3 belt transmission with external tensioner.
Universal 3 points linkage cat. I(ø 19.0-22.0mm).
CE Safety Guard.
|Minimal tractor power:||18 HP|
|Dimensions and weight|
|Working width:||125 cm|
